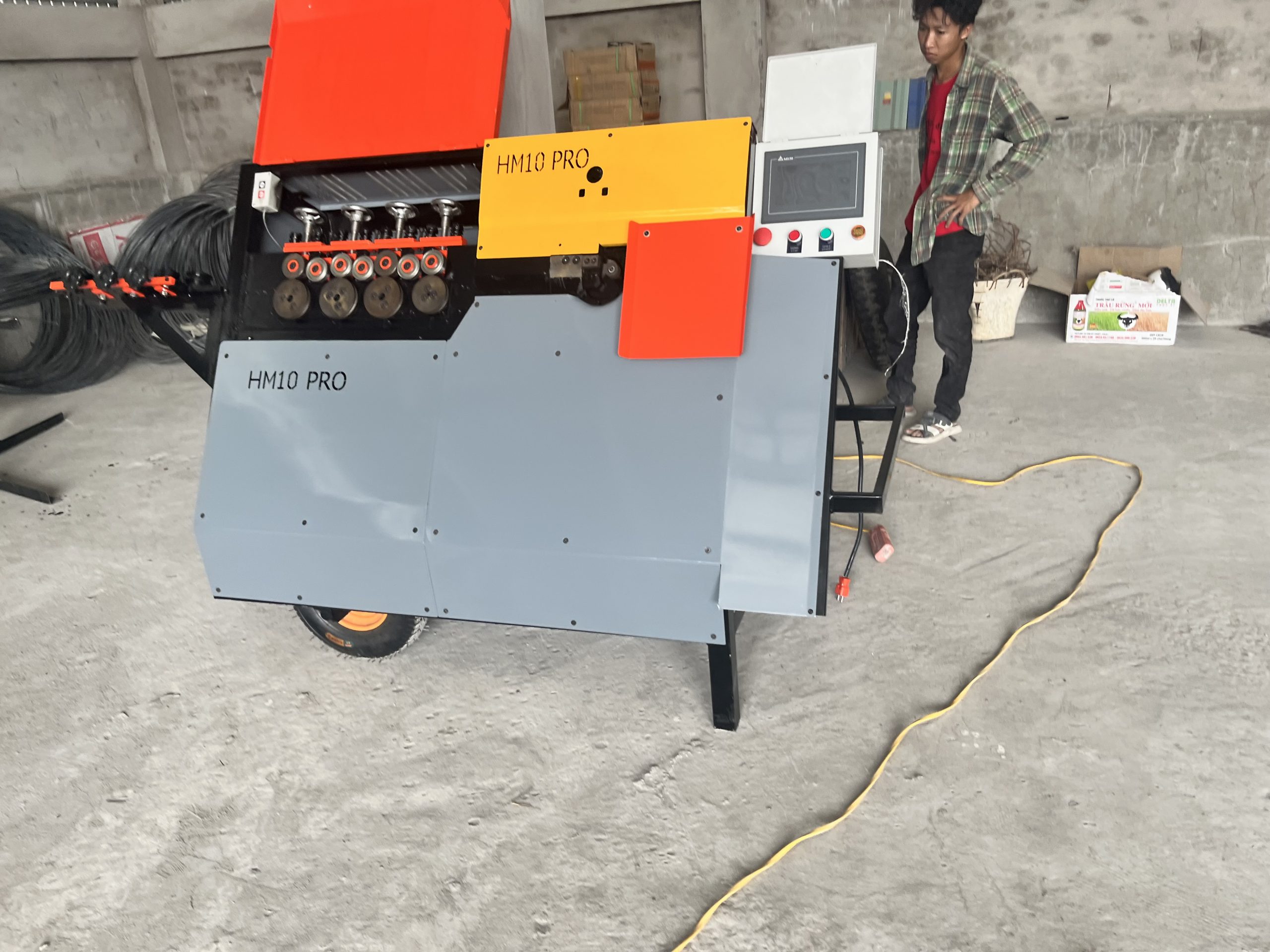

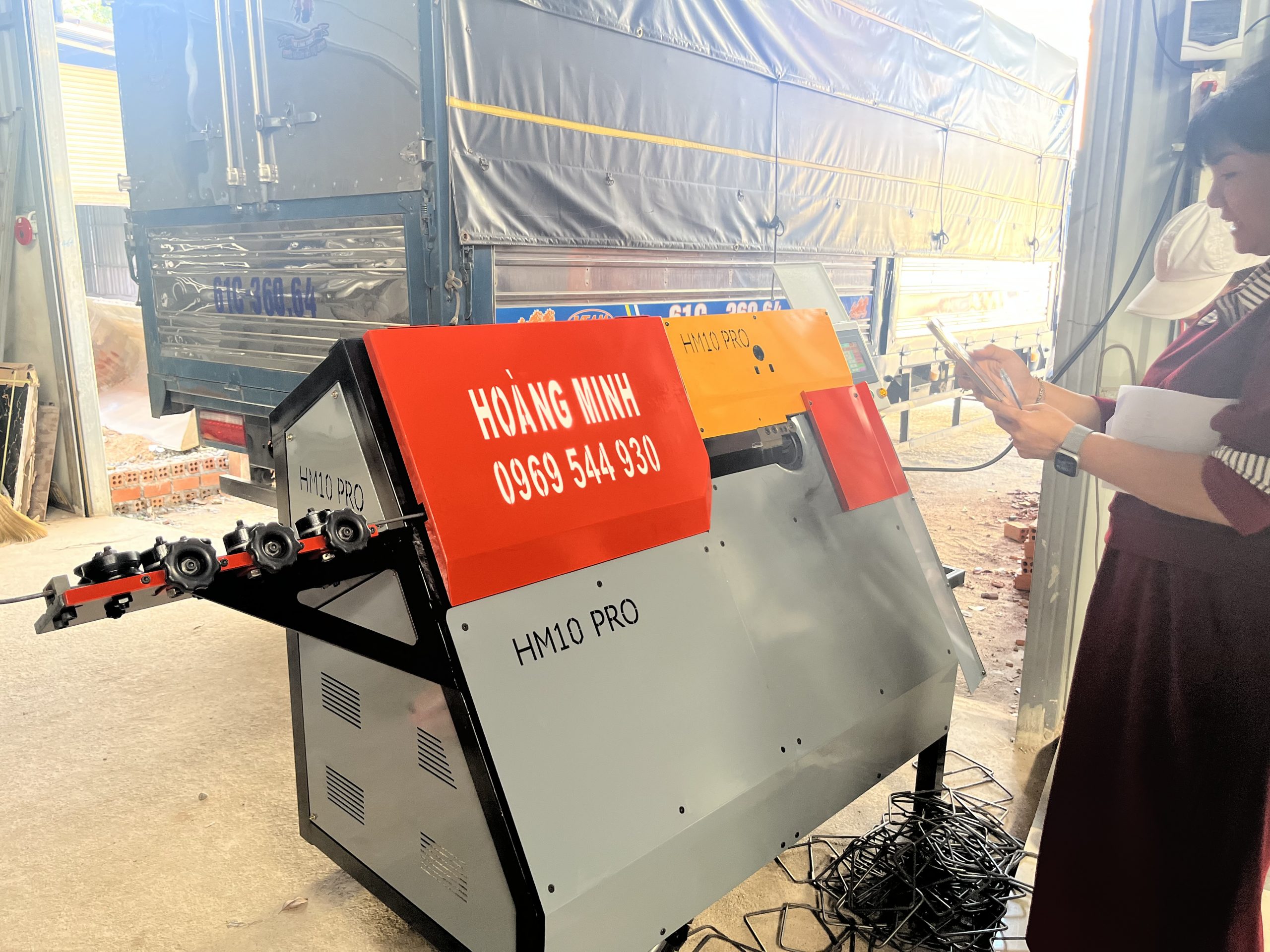

HM10 Pro Stirrup Bending Machine – Technical Specifications & Features

The HM10 Pro stirrup bending machine is equipped with advanced CNC servo technology. It delivers high precision, fast operation, and flexible performance. This machine is designed for construction projects and steel fabrication workshops.

Motor System

The machine is equipped with 3 servo motors for stable and accurate operation.

Servo Specifications:

Brand: Powmax
Power (P): 2.6 KW
Torque (Mn): 10 N/m
Speed (nM): 2500 r/min

The servo system ensures smooth movement, precise bending, and long-term durability.

Steel Bending Capacity

Suitable for steel bar sizes: 6mm, 8mm, 10mm
Applicable for round steel bars (standard construction type)

The machine can handle common construction requirements with consistent output quality.

Gearbox System

High-quality gearbox for stable transmission
Ensures smooth operation and reduced vibration
Supports continuous working performance

Machine Dimensions & Weight

Width: 750 mm
Length: 1700 mm
Height: 1500 mm
Weight: Approximately 400 kg

Compact design with strong structure, suitable for workshop and site use.

Mechanical System

Cutting and bending components made from SKD11 steel (Japan standard)
High hardness and wear resistance
Ensures long service life and consistent performance

Electrical System

Power supply: 220V or 380V (optional based on customer needs)
Sensors: 2 units – Made in Korea (Model: UP12RD-4NA)
Control panel: 7-inch touch screen

The electrical system is stable, user-friendly, and easy to operate.

Key Features

CNC servo control for high precision bending
Adjustable speed based on user preference
Fast operation for increased productivity
Supports multiple stirrup shapes and sizes
Easy setup and simple operation

The machine is flexible and suitable for different project requirements.

Advantages for Users

Improve production efficiency
Reduce manual labour
Ensure consistent stirrup quality
Suitable for both small and large-scale projects

Conclusion

The HM10 Pro stirrup bending machine is a reliable solution for modern construction and steel processing. With its strong mechanical system, CNC servo control, and flexible operation, it meets the demands of professional users.
